Multi Pair Thermocouple Cable Type J 8 Pairs Thermocouple Sensor Cable

Place of Origin China
Brand Name Dingzun
Certification ul
Model Number Y-144
Product Details
TYPE:
Thermocouple
Conductor:
NiCr/NiAl
Stranded:
Stranded
Construction:
24awg 8pairs
Insulation:
Pvc
Shield:
AL FOIL
Armor:
NO
SHEATH:
Pvc
Temperature:
105C
Voltage:
300/500V
Application:
Temperature Measurement
CORES:
16
High Light:

Thermocouple Multi Pair Instrument Cable

,

Type J Multi Pair Thermocouple Cable

,

multi pair thermocouple cable

Product Description

Thermocouple type: J
Conductor: Fe/CuNi
Section Area: 24awg
Insulation: PVC
Pairs: 8
Pair twisted: yes
IS: Al-pet + drain wire
OS: Al-pet + drain wire
Jacket: PVC
Rated temperature::105 ℃
Application: temperature measuring equipment
Type: multi pair thermocouple sensor cable

Thank you for providing the details about the type J 8pairs thermocouple sensor cable.

This cable is designed for use with type J thermocouples, which are commonly used in temperature measurement and control applications. The cable has eight pairs of conductors, each made of Fe/CuNi with a section area of 24 AWG, providing excellent conductivity and stability in temperature measurement.

Each pair of conductors is twisted to reduce crosstalk and improve signal quality. The insulation material used is PVC, which provides excellent electrical insulation and resistance to mechanical stress. The cable has an IS (inner shield) made of Al-pet+ drain wire, which provides excellent EMI/RFI protection, ensuring that the signal remains clean and stable even in the presence of external electromagnetic interference.

The cable is further shielded with an OS (outer shield) made of Al-pet+ drain wire, which provides additional EMI/RFI protection, minimizing noise interference and ensuring signal clarity. The jacket is made of PVC, which provides additional mechanical protection to the conductors.

The cable is rated for a temperature of 105℃, making it suitable for use in a wide range of temperature measuring equipment applications. The cable is rated as a multi-pair thermocouple sensor cable, which means it is suitable for use in thermocouple applications where multiple signals need to be transmitted.

Overall, this type J 8pairs thermocouple sensor cable is a reliable, high-performance cable that can be used in a variety of industrial applications where signal integrity and accuracy in temperature measurement are crit

Patrick Dingzun Cable:
Overall, this type J 8pairs thermocouple sensor cable is a reliable, high-performance cable that can be used in a variety of industrial applications where signal integrity and accuracy in temperature measurement are critical. Its combination of high-quality materials, shielding, and temperature ratings make it an excellent choice for use in demanding environments where the cable may be exposed to mechanical stress and interference.

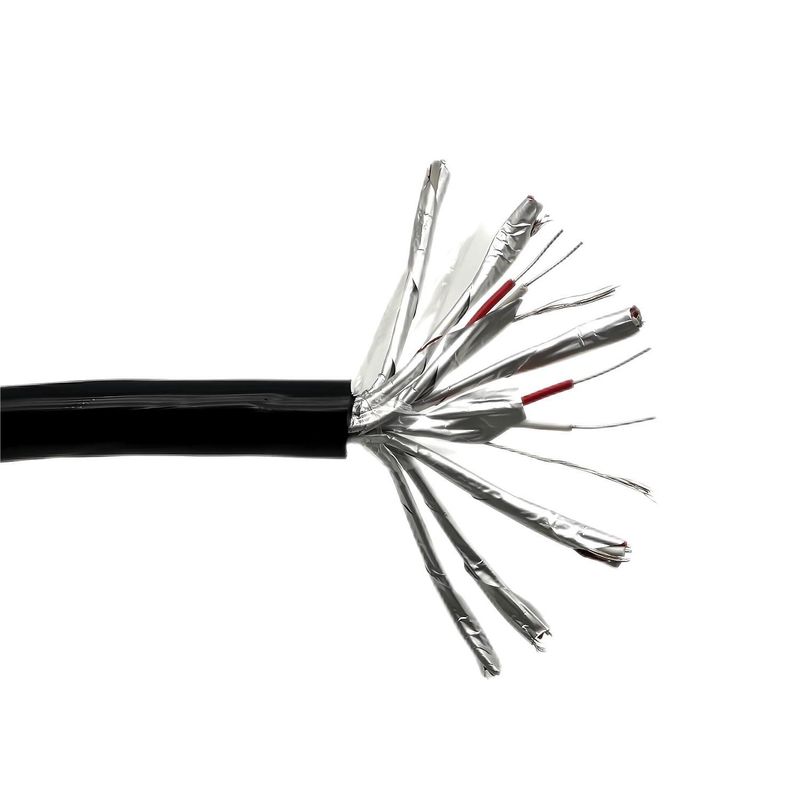

Multi Pair Thermocouple Cable Type J 8 Pairs Thermocouple Sensor Cable 0

Multi Pair Thermocouple Cable Type J 8 Pairs Thermocouple Sensor Cable 1

Multi Pair Thermocouple Cable Type J 8 Pairs Thermocouple Sensor Cable 2
