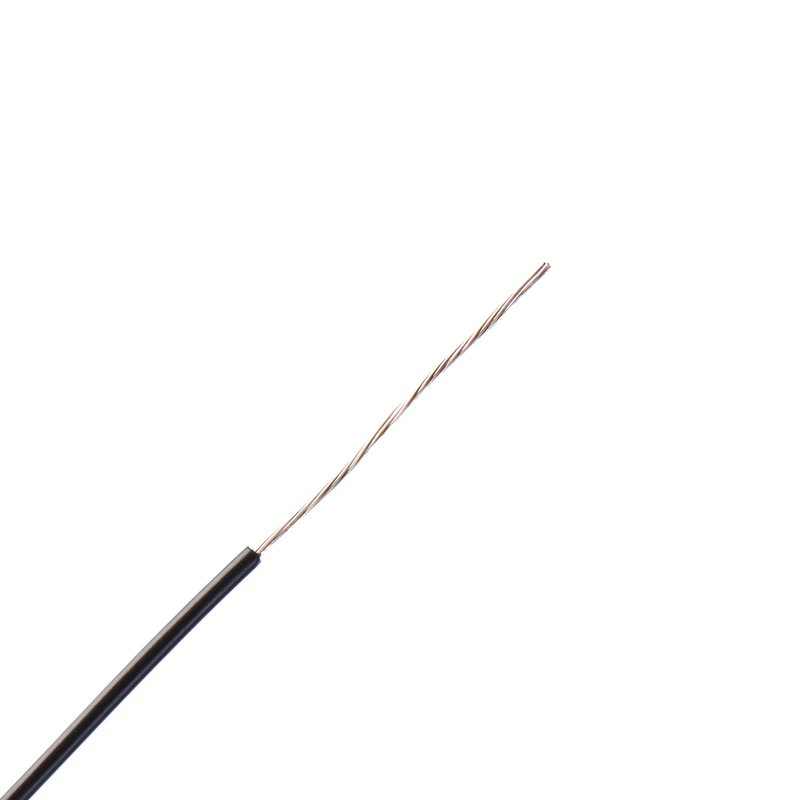

HEAT 260 Heat Resistance Stranded High Temperature PTFE Cable For Lighting Equipment

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 03-08
Product Details
Product Name::
UL1213 PTFE HIGH TEMPERATURE WIRE
Conductor Material::
Silver Copper/Nickel Copper
Insulation Material::
FEP
Rated Temperature::
-80℃~+105℃
Rated Voltage::
NOT SPECIFIED
Application:
Electronic Appliances
Type:
Solid Or Stranded
Size:
36AWG-16AWG
Sample:
Can Be Provided For Evaluating
Inspection:
Strict Inspection Personnel And Promotion
High Light:

Stranded High Temperature PTFE Cable

,

ptfe high temperature stranded wire

,

34 AWG High Temperature PTFE Cable

Product Description

Dingzun Cable heat resistance various awg/awm UL1213 stranded PTFE insulated High Temperature Wire for lighting equipment

Details:HEAT 260

Whether you also for low - price heart, but they have fallen into the business trap.
Many customers have asked us, is not teflon can achieve 200℃ temperature resistance, why your teflon can only achieve 150℃ temperature resistance? This is because the UL standard of 1213 says that the temperature resistance should be 150℃, but it can be used in a high temperature environment of 327℃ and below. Many customers do not understand this, so many businesses take advantage of this. They replace the material of UL1213 with other materials, such as PVC, whose temperature resistance is also 150℃, so the cost can be much lower. As the price can be much cheaper than other legitimate UL1213, many customers will fall into the merchant's price tag.
There's another factor: The insulation material of UL1213 is PTFE, and the production process of PTFE wire is difficult and complicated, which has high requirements on production equipment, testing environment and equipment. Therefore, there are few manufacturers that can produce it, but the demand is only increasing, and the production cost is also high. The price of this wire will be higher than the price of other teflon wire, so there will be the above mentioned business loophole situation.
PTFE wire can be used for a long time at 260℃ temperature, wire performance almost no change, when the temperature reaches its melting point 327℃, the outer insulation will begin to become soft, but once left the fire, the outer insulation will return to the original shape and hardness, and other materials of the wire: When the combustion temperature reaches the melting point, the outer insulation will burn and melt away from the conductor. If it drops on some combustibles, it is easy to cause a series of fire accidents, resulting in the loss of manpower, material and financial resources.
In addition to the above properties, PTFE also has excellent low temperature resistance, can be in such a very low temperature of -200℃, not hard brittle still has satisfactory mechanical strength and softness. And outstanding corrosion resistance, electrical insulation, weather resistance and other properties.



AWG

Section

(mm2)

Conductor No./Dia.

(mm)

Avg. Insulation Thickness

(mm)

Min. Insulation. Dia.

(mm)

Overall Dia.

(mm)

Max. Resistance

20℃(≤Ω/km)

36 0.014 7/0.05 0.20 0.18 0.55 1500.98
34 0.02 1/0.16 0.20 0.18 0.56 910.45
32 0.03 7/0.08 0.20 0.18 0.64 664.8
    1/0.20 0.20 0.18 0.60 588.3
30 0.05 7/0.10 0.20 0.18 0.70 381
    1/0.26 0.20 0.18 0.66 361
28 0.08 7/0.12 0.20 0.18 0.76 239
    1/0.32 0.20 0.18 0.72 227
26 0.13 7/0.16 0.20 0.18 0.88 150
    1/0.41 0.20 0.18 0.81 143
24 0.22 7/0.20 0.20 0.18 1.00 94.2
    19/0.12 0.20 0.18 1.00 89.3
22 0.33 7/0.25 0.20 0.18 1.15 59.4
    19/0.15 0.20 0.18 1.15 56.4
20 0.5 7/0.32 0.20 0.18 1.36 36.7
    19/0.18 0.20 0.18 1.30 35.2
18 0.8 7/0.40 0.20 0.18 1.60 22.7
    19/0.23 0.20 0.18 1.55 23.2
17 1 19/0.26 0.20 0.18 1.70 18.3
16 1.3 19/0.30 0.20 0.18 1.90 14.6
Remarks: able to produce according to customer’s requirement



1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?

Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc
