Y-05

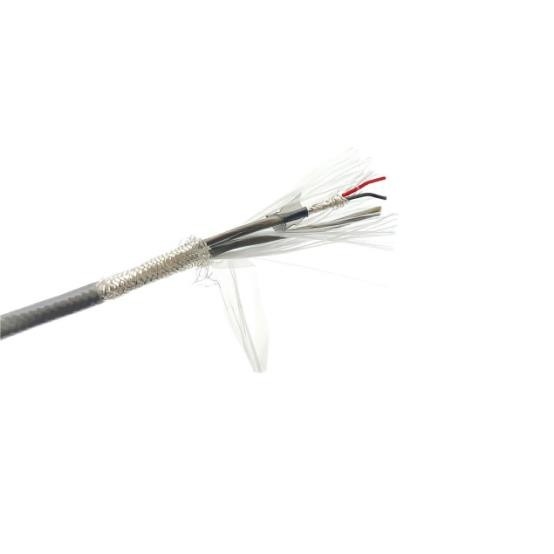

Above mentioned multi pairs cable is for Korean electronic company, we used 2pairs FEP wire twisted, 30awg conductors, are good for signal communication, specially for hi sensitive senor use.
Dingzun Cable has 18 years of manufacturing multi pair cable experience, for anti-interferences, and highly reliable signal transmission.
Multi pairs cable is a complicated cable which needs individual shield and drain wire for screen and general shield covering all the pairs. In some special cases, the multi pair cable s need armor.
We can manage all different reequipments cables, which are applied for audio, earthquake detection, well diagnosis, drone control etc. we supplied every year lot of high precision multi pair cable to different markets.
Our factory can provide small quantity for customer trial test, after wards, clients usually make tests and changes a little in parameters. We can effectively meets customer’s demands.
ARMORED CABLE | ||||||||
PAIRS | nominal conductor diameter | nominal insulation thickness | inner thickness | inner diameter | armor steel diameter | Jacjet thickness | Max. Overall Diameter | estimated weight |
pairs | mm | mm | mm | mm | mm | mm | mm | Kg/Km |
2(0) | 0.9 | 0.3 | 0.8 | 5.7 | 0.9 | 1.3 | 10.1 | 200 |
5 | 0.9 | 0.3 | 1 | 9.4 | 0.9 | 1.4 | 14.1 | 370 |
10 | 0.9 | 0.3 | 1.1 | 13 | 1.25 | 1.5 | 18.6 | 610 |
20 | 0.9 | 0.3 | 1.2 | 16.8 | 1.25 | 1.6 | 22.7 | 930 |
30 | 0.9 | 0.3 | 1.4 | 19.9 | 1.6 | 1.7 | 26.7 | 1390 |
50 | 0.9 | 0.3 | 1.6 | 25.4 | 1.6 | 1.9 | 32.6 | 1940 |
100 | 0.9 | 0.3 | 1.9 | 35.5 | 2 | 2 | 44.1 | 3700 |
SHIELDED | ||||||||
2(0) | 0.9 | 0.3 | 0.8 | 6.2 | 0.9 | 1.3 | 10.6 | 220 |
5 | 0.9 | 0.3 | 1 | 9.9 | 0.9 | 1.4 | 14.6 | 380 |
10 | 0.9 | 0.3 | 1.1 | 13.5 | 1.25 | 1.5 | 19.1 | 630 |
20 | 0.9 | 0.3 | 1.2 | 17.3 | 1.25 | 1.6 | 23.2 | 955 |
30 | 0.9 | 0.3 | 1.4 | 20.4 | 1.6 | 1.7 | 27.2 | 1415 |
50 | 0.9 | 0.3 | 1.6 | 25.9 | 1.6 | 1.9 | 33.1 | 2000 |
100 | 0.9 | 0.3 | 1.9 | 36 | 2 | 2 | 44.6 | 3750 |
NON-ARMORED CABLE | ||||||||
pairs | nominal conductor diameter | section area | insulation thickness | jacket thickness | Max. Overall Diameter | estimated weight | ||
pairs | mm | mm2 | mm | mm | mm | Kg/Km | ||
NON-SHIELDED | ||||||||
2(0) | 0.9 | 0.64 | 0.3 | 1.3 | 5.7 | 45 | ||
5 | 0.9 | 0.64 | 0.3 | 1.4 | 9.4 | 115 | ||
10 | 0.9 | 0.64 | 0.3 | 1.5 | 13 | 205 | ||
20 | 0.9 | 0.64 | 0.3 | 1.6 | 16.8 | 380 | ||
30 | 0.9 | 0.64 | 0.3 | 1.7 | 19.9 | 570 | ||
50 | 0.9 | 0.64 | 0.3 | 1.9 | 25.4 | 920 | ||
100 | 0.9 | 0.64 | 0.3 | 2 | 35.5 | 1820 | ||
SHIELDED | ||||||||
2(0) | 0.9 | 0.64 | 0.3 | 1.3 | 6.2 | 50 | ||
5 | 0.9 | 0.64 | 0.3 | 1.4 | 9.9 | 125 | ||
10 | 0.9 | 0.64 | 0.3 | 1.5 | 13.5 | 215 | ||
20 | 0.9 | 0.64 | 0.3 | 1.6 | 17.3 | 390 | ||
30 | 0.9 | 0.64 | 0.3 | 1.7 | 20.4 | 580 | ||
50 | 0.9 | 0.64 | 0.3 | 1.9 | 25.9 | 940 | ||
100 | 0.9 | 0.64 | 0.3 | 2 | 36 | 1850 |
