PVC Control Custom Multi Pair Instrument Cable 3pairs 0.5mm2
  • PVC Control Custom Multi Pair Instrument Cable 3pairs 0.5mm2
  • PVC Control Custom Multi Pair Instrument Cable 3pairs 0.5mm2
  • PVC Control Custom Multi Pair Instrument Cable 3pairs 0.5mm2
  • PVC Control Custom Multi Pair Instrument Cable 3pairs 0.5mm2
  • PVC Control Custom Multi Pair Instrument Cable 3pairs 0.5mm2
  • PVC Control Custom Multi Pair Instrument Cable 3pairs 0.5mm2

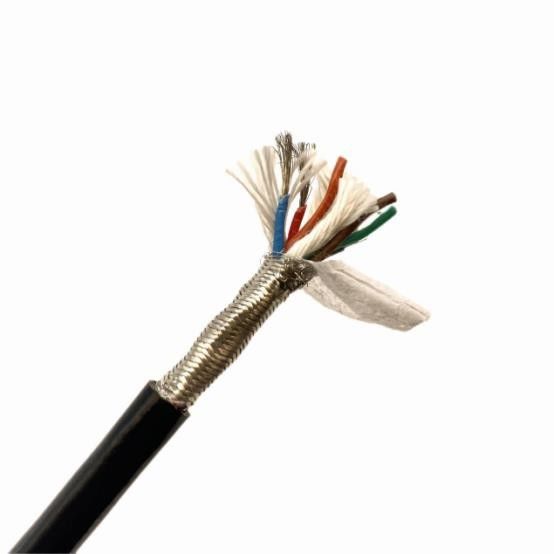

PVC Control Custom Multi Pair Instrument Cable 3pairs 0.5mm2

Place of Origin shanghai
Brand Name dingzun
Certification ul
Model Number y-04
Product Details
BRAND:
Dingzun
C/O:
CHINA
Conductor:
Tinned Copper
Stranded:
Stranded
Construction:
3P*0.2MM2
Insulation:
PVC
Shield:
YES
Armor:
YES
SHEATH:
PVC
Temperature:
90C
Voltage:
600V
Packing:
100M/ROLL
Application:
CONTROL CABLE
CORES:
3PAIRS
High Light:

multi pair armored instrument cable

,

PVC Control Multi Pair Instrument Cable

,

Custom 3pairs Control Cable

Product Description

Y-04

3 pair PVC insulation and Sheath cable which is typical multi pair instrument cable, we used 0.5mm2 very popular wire and twisted as a pair put the shielding for reducing interferences to keep extreme clean environment for communication. This cable use PVC material as insulation and jacket, which is economic, and easy approachable.

Dingzun always supply clients with high efficiency, low-cost products.

As our years of manufacturing experience, the twist gap distance and the strength should be paid more attention, as PVC material is very soft and easy to distort then affect the normal signal transmission. The second point is the working temperature, as PVC melt point is much lower than thermal Teflon material as FEP, PTFE, to be warned that you never put PVC together with FEP as insulation and sheath, which will cause insulation melting while proceeding the jacket.

We always provide our customers hi precision, high-performance low-cost products. We do custom multi pair instrument cable suitable for instrumentation needs, besides low MOQ service is one of the most popular point.



                                                                ARMORED CABLE

PAIRS nominal conductor diameter nominal insulation thickness inner thickness inner diameter armor steel diameter Jacjet thickness Max. Overall Diameter estimated weight
pairs mm mm mm mm mm mm mm Kg/Km
2(0) 0.9 0.3 0.8 5.7 0.9 1.3 10.1 200
5 0.9 0.3 1 9.4 0.9 1.4 14.1 370
10 0.9 0.3 1.1 13 1.25 1.5 18.6 610
20 0.9 0.3 1.2 16.8 1.25 1.6 22.7 930
30 0.9 0.3 1.4 19.9 1.6 1.7 26.7 1390
50 0.9 0.3 1.6 25.4 1.6 1.9 32.6 1940
100 0.9 0.3 1.9 35.5 2 2 44.1 3700
SHIELDED
2(0) 0.9 0.3 0.8 6.2 0.9 1.3 10.6 220
5 0.9 0.3 1 9.9 0.9 1.4 14.6 380
10 0.9 0.3 1.1 13.5 1.25 1.5 19.1 630
20 0.9 0.3 1.2 17.3 1.25 1.6 23.2 955
30 0.9 0.3 1.4 20.4 1.6 1.7 27.2 1415
50 0.9 0.3 1.6 25.9 1.6 1.9 33.1 2000
100 0.9 0.3 1.9 36 2 2 44.6 3750
                                                                NON-ARMORED CABLE

pairs nominal conductor diameter section area insulation thickness jacket thickness Max. Overall Diameter estimated weight
pairs mm mm2 mm mm mm Kg/Km
NON-SHIELDED
2(0) 0.9 0.64 0.3 1.3 5.7 45
5 0.9 0.64 0.3 1.4 9.4 115
10 0.9 0.64 0.3 1.5 13 205
20 0.9 0.64 0.3 1.6 16.8 380
30 0.9 0.64 0.3 1.7 19.9 570
50 0.9 0.64 0.3 1.9 25.4 920
100 0.9 0.64 0.3 2 35.5 1820
   SHIELDED
2(0) 0.9 0.64 0.3 1.3 6.2 50
5 0.9 0.64 0.3 1.4 9.9 125
10 0.9 0.64 0.3 1.5 13.5 215
20 0.9 0.64 0.3 1.6 17.3 390
30 0.9 0.64 0.3 1.7 20.4 580
50 0.9 0.64 0.3 1.9 25.9 940
100 0.9 0.64 0.3 2 36 1850
