Dingzun Flexible PVC Shielded Data Multi Pair Instrument Cable 5 Pairs

Brand Name:	Dingzun
Model Number:	Y-46
MOQ:	500m
Price:	USD 0.25-2.5
Packaging Details:	ROLL
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TYPE:

Multi Pair Instrument Cable

Conductor:

Tinned Copper

Stranded:

Stranded

Construction:

24awg 5 Pairs

Insulation:

Shield:

Tc Spiral

Armor:

SHEATH:

Temperature:

Voltage:

300/500V

Application:

Instrument Control

CORES:

Supply Ability:

2000M/DAY

Highlight:

multi pair fire resistance instrument cable

PVC Shielded Multi Pair Instrument Cable

5 Pairs Instrument Cable

Product Description

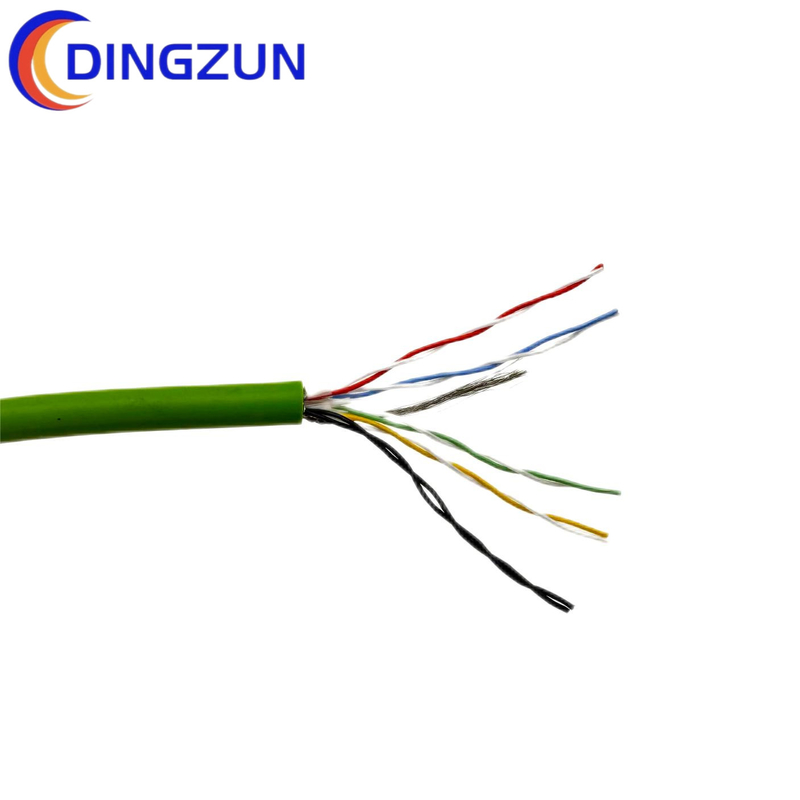

Description: 5 pairs *24 awg shielded cable for robot use
Conductor: tinned copper

Construction: 24 awg
Insulation : PVC
Cores: 10
Pairs: 5
Twist: yes
Shield: Spiral wrapping(T/C)
Coverage ≥85%
Sheath: Silicone

This is a robot use Cable, 5 cores 24 awg twisted shielded cable. Dingzun Cable,18 years of multi pair instrument cable manufacturing experience. Actually, multipair data cable required twisted, however, the strength and twist pitch are very important, which may affect the impendence and transmission quality etc.

As his cable is working as ROBOT appliances, we have to think about the point of moving installation, so the silicone rubber material is the first choice in such cases.

We also need to consider the anti-interference effect for a data cable, so we adopt the plan that tinned copper wrapping shield with coverage more than 85%, which can efficiently shield environmental interferences, meanwhile, spiral wrapping comparing to normal braided shielding, the former is much more flexible, and it’s the reason why we design using spiral wrapping.

In general, multi pair instrument cable needs comprehensive understanding the cable manufacturing and different industrial requirements, Dingzun cable is your right choice.
