6 Pair Twisted Shielded Pvc Multi Pair Sensor Cable
  • 6 Pair Twisted Shielded Pvc Multi Pair Sensor Cable
  • 6 Pair Twisted Shielded Pvc Multi Pair Sensor Cable
  • 6 Pair Twisted Shielded Pvc Multi Pair Sensor Cable
  • 6 Pair Twisted Shielded Pvc Multi Pair Sensor Cable

6 Pair Twisted Shielded Pvc Multi Pair Sensor Cable

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number Z-62
Product Details
Conductor Material:
TINNED COPPER
Stranded:
STRANDED
Construction:
7/0.16
Insulation:
PVC
Shield:
AL FOIL + DRAIN WIRE
Armor:
TINNED COPPER WIRE BRAID
SHEATH:
PVC
Temperature:
105c
Voltage:
300V
Application:
SENSOR CABLE
High Light:

6 Pair Sensor Cable 300V

,

Pvc Insulation Multi Pair Sensor Cable

,

Twisted Shielded Multi Pair Instrument Cable

Product Description

Z-62

Description: 6PAIR TWISTED SHIELDED PVC MULTI PAIR SENSOR CABLE
Conductor: tinned copper
Construction: 24awg 7/0.2
Pairs: 6
Twisted: required
insulation PVC
pair shield: Al foil wrapping
drain wire: tinned copper wire
filler: cotton cord
Binder: poly tape
overall shield: tinned copper wire braided
jacket: PVC
Rated Temperature: 75 degree
Rated Voltage: 24vdc
Type: multipair sensor cable


6PAIR TWISTED SHIELDED PVC MULTI PAIR SENSOR CABLE is a custom cable applied for sensor equipment.

Dingzun Cable has rich experience for manufacturing multipair sensor cables, just like this 6pair sensor cable, 6prx24awg, each pair required twisted and shielded in order to prevent from the interference among 6 pairs. We used al foil and drain wire for shielding. We also use cotton cord as filler, so as to make the whole cable round and smooth.
When using AL foil and drain wire, the factory should be very careful the Aluminum ace has to be towards the drain wire, whatever the drain wire is inside or outside of the foil. Otherwise, the drain wire shield function is unworkable.

Since it’s a multi sensor cable, the double shield is compulsory, we used tinned copper wire braided to avoid the noise from outside working ambient.
PVC insulation and Jacket keeps the whole sensor cable very soft, easy for installation. And economic.

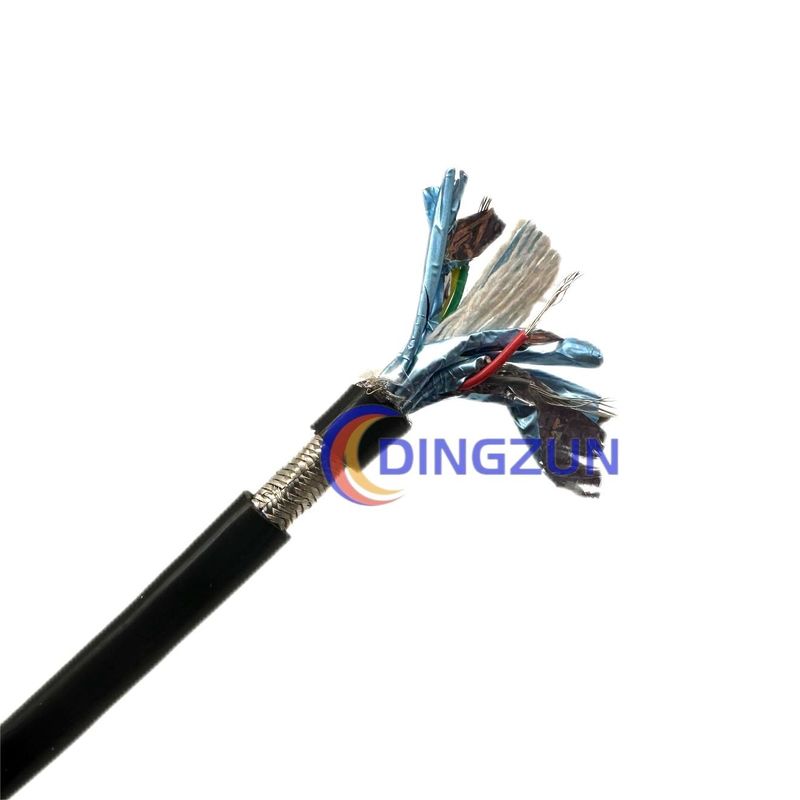

6 Pair Twisted Shielded Pvc Multi Pair Sensor Cable 0

6 Pair Twisted Shielded Pvc Multi Pair Sensor Cable 1
