| Place of Origin | shanghai |
| Brand Name | dingzun |
| Certification | ul |
| Model Number | y-105 |
Conductor: silver copper
Construction: 30AWG
PAIRS:2
PAIR TWISTED: REQUIRED
Insulation FEP
IS: AL PET+ DRAIN WIRE
OS: galvanized steel braided
Jacket:FEP
Rated temp:-60℃-180℃
Type:multi pair audio cable

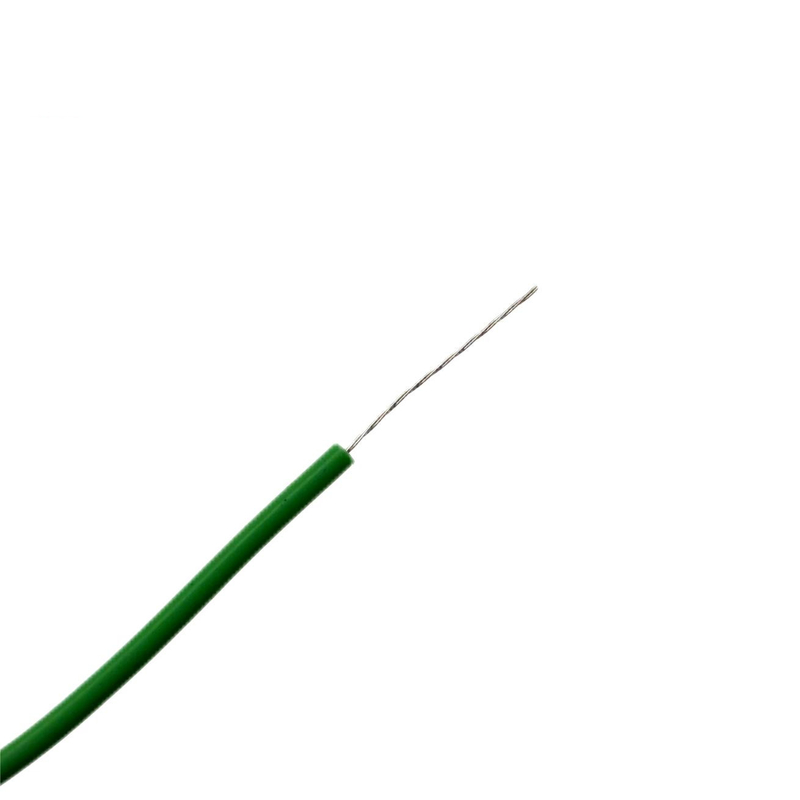

Thank you for providing the details about the 2pr*30awg double shielded audio cable.
This cable is specifically designed for use in audio applications where signal quality and noise immunity are critical. The cable has two pairs of conductors, each made of silver copper with a 30AWG construction, providing excellent conductivity and stability in signal transmission. The conductors are twisted to reduce crosstalk and improve signal quality.
The insulation material used is FEP, which is known for its high temperature resistance, excellent dielectric properties, and low signal attenuation. The cable has an IS (inner shield) made of AL PET+ drain wire, which provides excellent EMI/RFI protection, ensuring that the signal remains clean and stable even in the presence of external electromagnetic interference.
The cable is further shielded with a galvanized steel braided OS (outer shield), which provides additional EMI/RFI protection, minimizing noise interference and ensuring signal clarity. The jacket is made of FEP, which provides additional mechanical protection to the conductors.
The cable is rated for a temperature range of -60℃ to +180℃, which makes it suitable for use in a wide range of applications, including professional audio, recording studios, and broadcast facilities. The cable is also rated as a multi-pair audio cable, which means it is suitable for use in audio applications where multiple signals need to be transmitted.
Generally speaking, this 2pr*30awg double shielded audio cable is a reliable, high-performance cable that can be used in a variety of applications where signal quality and noise immunity are crucial. Its combination o
Patrick Dingzun Cable:
Generally speaking, this 2pr*30awg double shielded audio cable is a reliable, high-performance cable that can be used in a variety of applications where signal quality and noise immunity are crucial. Its combination of high-quality materials, shielding, and temperature ratings make it an excellent choice for use in demanding environments where audio clarity and accuracy are essential.
| ARMORED CABLE | ||||||||
| PAIRS | nominal conductor diameter | nominal insulation thickness | inner thickness | inner diameter | armor steel diameter | Jacjet thickness | Max. Overall Diameter | estimated weight |
| pairs | mm | mm | mm | mm | mm | mm | mm | Kg/Km |
| 2(0) | 0.9 | 0.3 | 0.8 | 5.7 | 0.9 | 1.3 | 10.1 | 200 |
| 5 | 0.9 | 0.3 | 1 | 9.4 | 0.9 | 1.4 | 14.1 | 370 |
| 10 | 0.9 | 0.3 | 1.1 | 13 | 1.25 | 1.5 | 18.6 | 610 |
| 20 | 0.9 | 0.3 | 1.2 | 16.8 | 1.25 | 1.6 | 22.7 | 930 |
| 30 | 0.9 | 0.3 | 1.4 | 19.9 | 1.6 | 1.7 | 26.7 | 1390 |
| 50 | 0.9 | 0.3 | 1.6 | 25.4 | 1.6 | 1.9 | 32.6 | 1940 |
| 100 | 0.9 | 0.3 | 1.9 | 35.5 | 2 | 2 | 44.1 | 3700 |
| SHIELDED | ||||||||
| 2(0) | 0.9 | 0.3 | 0.8 | 6.2 | 0.9 | 1.3 | 10.6 | 220 |
| 5 | 0.9 | 0.3 | 1 | 9.9 | 0.9 | 1.4 | 14.6 | 380 |
| 10 | 0.9 | 0.3 | 1.1 | 13.5 | 1.25 | 1.5 | 19.1 | 630 |
| 20 | 0.9 | 0.3 | 1.2 | 17.3 | 1.25 | 1.6 | 23.2 | 955 |
| 30 | 0.9 | 0.3 | 1.4 | 20.4 | 1.6 | 1.7 | 27.2 | 1415 |
| 50 | 0.9 | 0.3 | 1.6 | 25.9 | 1.6 | 1.9 | 33.1 | 2000 |
| 100 | 0.9 | 0.3 | 1.9 | 36 | 2 | 2 | 44.6 | 3750 |
| NON-ARMORED CABLE | ||||||||
| pairs | nominal conductor diameter | section area | insulation thickness | jacket thickness | Max. Overall Diameter | estimated weight | ||
| pairs | mm | mm2 | mm | mm | mm | Kg/Km | ||
| NON-SHIELDED | ||||||||
| 2(0) | 0.9 | 0.64 | 0.3 | 1.3 | 5.7 | 45 | ||
| 5 | 0.9 | 0.64 | 0.3 | 1.4 | 9.4 | 115 | ||
| 10 | 0.9 | 0.64 | 0.3 | 1.5 | 13 | 205 | ||
| 20 | 0.9 | 0.64 | 0.3 | 1.6 | 16.8 | 380 | ||
| 30 | 0.9 | 0.64 | 0.3 | 1.7 | 19.9 | 570 | ||
| 50 | 0.9 | 0.64 | 0.3 | 1.9 | 25.4 | 920 | ||
| 100 | 0.9 | 0.64 | 0.3 | 2 | 35.5 | 1820 | ||
| SHIELDED | ||||||||
| 2(0) | 0.9 | 0.64 | 0.3 | 1.3 | 6.2 | 50 | ||
| 5 | 0.9 | 0.64 | 0.3 | 1.4 | 9.9 | 125 | ||
| 10 | 0.9 | 0.64 | 0.3 | 1.5 | 13.5 | 215 | ||
| 20 | 0.9 | 0.64 | 0.3 | 1.6 | 17.3 | 390 | ||
| 30 | 0.9 | 0.64 | 0.3 | 1.7 | 20.4 | 580 | ||
| 50 | 0.9 | 0.64 | 0.3 | 1.9 | 25.9 | 940 | ||
| 100 | 0.9 | 0.64 | 0.3 | 2 | 36 | 1850 | ||
