3 Pair Twisted Shielded Instrumentation Multi Pair Cable
  • 3 Pair Twisted Shielded Instrumentation Multi Pair Cable
  • 3 Pair Twisted Shielded Instrumentation Multi Pair Cable
  • 3 Pair Twisted Shielded Instrumentation Multi Pair Cable
  • 3 Pair Twisted Shielded Instrumentation Multi Pair Cable

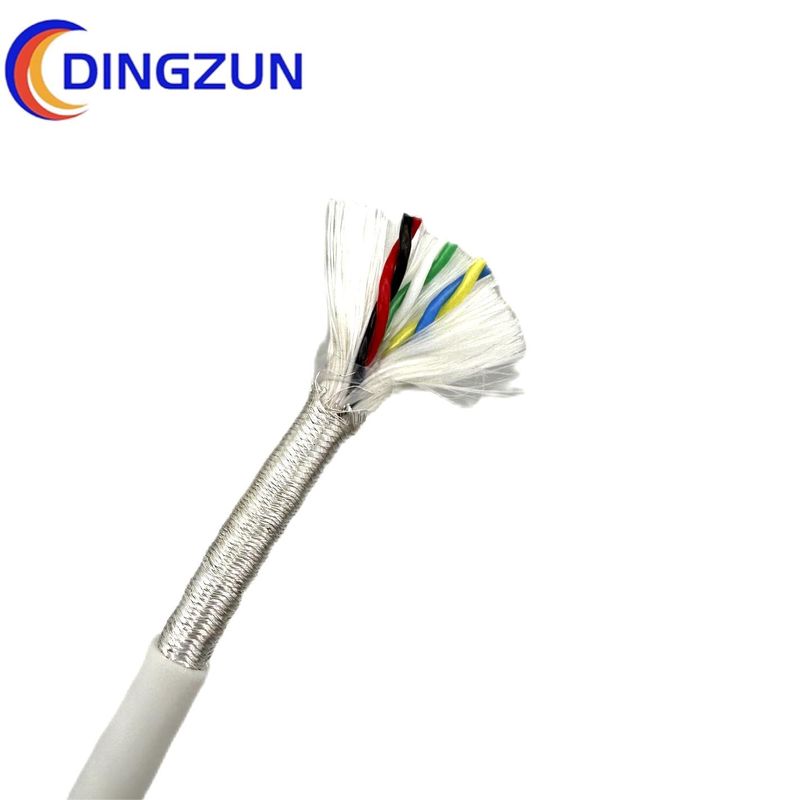

3 Pair Twisted Shielded Instrumentation Multi Pair Cable

Place of Origin shanghai
Brand Name dingzun
Certification ul
Model Number z-83b
Product Details
Silver Copper
Rated Temperature:
Rated Voltage:
Signal Cable
High Light:

Fep Multi Pair Instrument Cable


3 Pair Twisted Shielded Cable


Shielded Multi Pair Cable

Product Description


Description:3 pair twisted shielded instrumentation multi pair cable

Conductor: silver plated copper
Construction: 63/0.08
Insulation: FEP
Pairs: 3
Twisted: yes
Filler: fiber glass
Shield: SPC braided
Jacket: Silicone
O.D. 7.2mm
Rated temperature: -60℃---+180℃
Rated Voltage: 24V
Type: signal cable Under high temperature
Features:Super fine wire stranded
Very soft
Silver plated copper conductor
Heat resistance
Signal no loss
FEP insulation to minimize outer diameter

3 pair twisted shielded instrumentation multi-pair cable. Engineered to deliver exceptional performance in demanding environments, this cable is designed to meet the highest industry standards and exceed your expectations.

At the heart of this cable is a conductor made of silver-plated copper. With a construction of 63/0.08, it provides excellent conductivity and ensures reliable signal transmission. This conductor configuration is specifically designed to minimize signal loss, ensuring that your data is transmitted accurately and efficiently.

The insulation of this cable is made of FEP (Fluorinated Ethylene Propylene), a high-performance material known for its exceptional electrical properties and resistance to heat. The FEP insulation not only provides excellent electrical insulation but also helps to minimize the outer diameter of the cable, making it more flexible and easier to handle.

To further enhance performance, the pairs in this cable are twisted. The twisting of the pairs helps to reduce crosstalk and electromagnetic interference, ensuring clean and clear signal transmission. This feature is particularly valuable in environments where multiple cables are deployed in close proximity.

To maintain the structural integrity of the cable, a filler made of fiberglass is incorporated. The filler provides additional strength and stability, ensuring that the cable maintains its shape and performance even under challenging conditions.

For enhanced protection against external interference, this cable features a shield. The shield consists of a braided layer made of silver-plated copper (SPC). The SPC braided shield effectively attenuates electromagnetic interference, safeguarding your signals and maintaining signal integrity.

The outer jacket of this cable is made of silicone, a durable and heat-resistant material. With an outer diameter of 7.2mm, this cable strikes a balance between flexibility and robustness, making it suitable for various installation scenarios.

This cable is engineered to withstand extreme temperatures, with a rated temperature range of -60℃ to +180℃. It is designed specifically for applications that require signal transmission under high-temperature conditions. Whether you're operating in industrial settings or high-temperature environments, this cable ensures reliable performance and peace of mind.

With a rated voltage of 24V, this cable is suitable for a wide range of applications. From industrial automation to process control, this cable provides the necessary stability and reliability to meet the demands of your critical systems.

our 3 pair twisted shielded instrumentation multi-pair cable offers outstanding performance and reliability. Its super fine wire stranded construction, combined with a soft and flexible design, makes it easy to handle and install. The silver-plated copper conductor, along with the heat-resistant FEP insulation, ensures excellent signal transmission with minimal loss. With its features optimized for high-temperature environments and a robust construction, this cable is the ideal choice for your signal transmission needs. Trust in our cable to provide you with the utmost quality and performance in even the most demanding conditions.

3 Pair Twisted Shielded Instrumentation Multi Pair Cable 0
